Island Packet 420 Motor Sailer: New 2020

Island Packet Yachts has announced at the Maine Rendezvous, the design of a new Island Packet 420 Motor Sailer. This will be presented at the Annapolis Boat Show 2019 with a scale model and drawings. You can place your order NOW for this very cool new design by the factory. There is limited information out right now, but this is what is published online right now. I cant wait to see this yacht in the water. The Island Packet Fleet should really LOVE this new design.

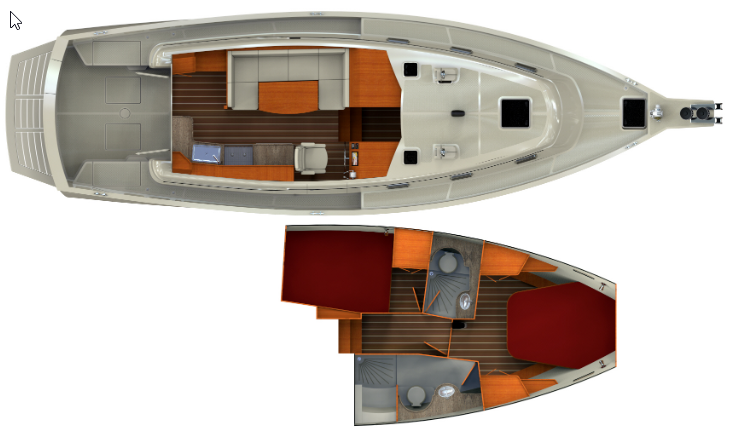

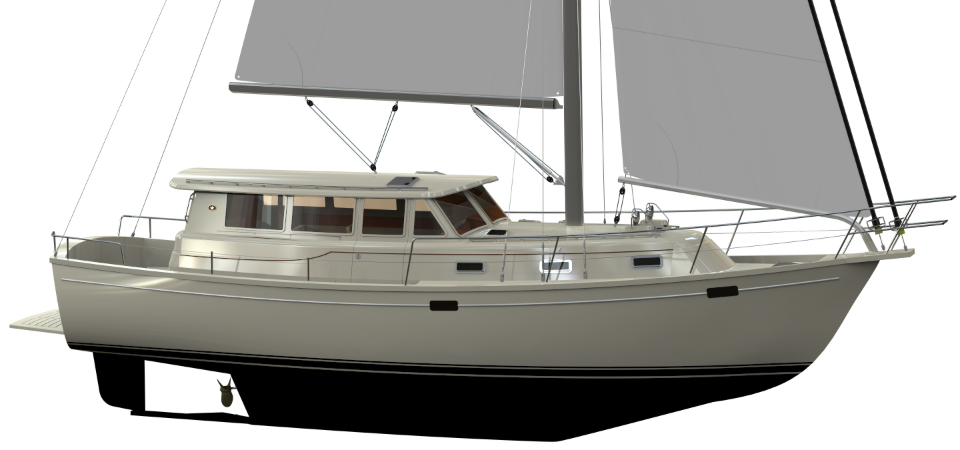

Here are a few photos:

---

TEXT DETAILS :

2020 NEW Island Packet 42 Motor Sailer
Island Packet Yachts

---

Key Features

Starboard side opening door by helm for quick access to side deck
Recessed side decks for safety
Aft deck retractable shade option
Second stateroom available with desk and single-berth arrangement
Hanging locker in 2nd stateroom designed for optional washer/dryer unit
Lewmar stowe sheet winches standard for main and jib sheeting from helm
Deck salon settee converts to double berth or lounge area
Transom door with swim step

---

Island Packet 42 Motor Sailer
SPECS

LOA: 42’5? (including bow pulpit, not swim step)
LWL: 34’9?
Beam: 12’9?
Draft: 3’8”
Displacement: 23,000 lbs
Max. Headroom: 6’6”
Ballast: 5,000 lbs
Sail Area: 733 sq ft
Mast Height: 55’0?
Cabins/Berths: 2/6
Disp/Length Ratio: 245
Auxiliary Power: 115 hp
Max Speed: 8+ kts
Range Under Power: ~1,000 miles
Fuel Capacity: 320 gal
Water Capacity: 130 gal
Holding Capacity: 50 gal
Sail Area/Disp Ratio: 14.5%
Stix: 39

---

Island Packet 42 Motor Sailer
Deck

Full SS bow, side and stern rails w/ LED navigation light
Fiberglass swim step
(2) SS Mantus anchor rollers
Painted Hoyt boom
SS bow cleats and chocks
Pre-wired for anchor windlass
(6) SS opening ports with screens (self-draining w/ friction hinges)
(5) overhead aluminum-frame hatches with shades and screens (SS frame optional)
Full-length SS hand rails along cabin top
(2) SS dorade vents with line guards
Harken deck hardware
Harken electric aft deck winch for main, jib outhaul lines and reacher furling lines
Spinlock halyard and sheet stoppers
Large cockpit with line storage and lazarette access
Emergency tiller stored in lazarette
(3) Raymarine I70 displays at helm for knot, depth, WP/WS and more
Ray 63 VHF at helm
12v and USB outlet on pedestal
Wraparound stern rails with integrated seats
LED cockpit, transom and stanchion gate safety lighting (dimmable)
Safety exterior lights on fader control and 110v outlet in cockpit
Transom boarding ladder
(4) hull side non-opening ports
Hot and cold freshwater shower
Island Packet step plates on side boarding gate

---

Island Packet 42 Motor Sailer
Interior

Easy access to engine room from salon or under stairs
Numerous SS overhead and bulkhead-mounted handholds
Corian countertops in galley and head (color options available)
Overhead and under-gunnel LED lighting on dimmers
All interior lights are LED
USB outlets in salon, forward stateroom and guest stateroom
Galvanic isolator
Seagull freshwater filter with outlet at galley
iPad loaded with owner’s manuals

---

Island Packet 42 Motor Sailer
Forward Stateroom

Island berth with storage under
Large hanging locker
Numerous overhead LED touch lights
Pre-wired for fans
Pillow-top, tall-coil 7-1/2? inner-spring mattress

---

Island Packet 42 Motor Sailer
Owner's Head

Raritan electric flush freshwater toilet
Stand-up shower and sitting bench
Bi-fold shower door
Scandvik faucets
Corian counter with vessel or under-mount sink
Vanity cabinet storage with trash bin and large mirror above sink

---

Island Packet 42 Motor Sailer
Main Salon / Galley

Full settee to port w/ slide out to convert to full bunk
Under settee storage
Large bulkhead-mounted IP foldable salon table with storage behind
(3) house batteries, 125ah each Lifeline 31XT AGM
(1) dedicated starting battery, 100ah Lifeline 27 AGM
Mastervolt 2500 continuous 5000 peak inverter/100 amp charger
Balmar digital battery monitor
Sapele and oak varnished sole
Force 10 3-burner gimbaled propane stove and oven
Vitrofrigo refrigerator/freezer two-drawer unit
Dish rack and utensil drawers
Under counter storage for dry goods
Seamless Corian or under mount SS galley sink
Corian sink filler insert (stows in cabinet)
Trash bin
Microwave

---

Island Packet 42 Motor Sailer
Guest Stateroom

Large double berth with pillow-top, tall-coil 7-1/2? inner-spring mattress
LED lights on dimmer
Numerous under berth storage compartments
Hanging locker with drain for foul-weather gear and fits the optional washer/dryer combo unit

---

Island Packet 42 Motor Sailer
Guest Head

Raritan electric freshwater toilet
Corian counter top
Vessel style or under counter sink
Scandvik faucet
Cabinet storage with trash bin
Mirror above sink

---

Island Packet 42 Motor Sailer
Engine Tankage

Yanmar 115hp common rail/smart diesel engine
Yanmar C engine panel with temperature and oil pressure gauges
Three aluminum diesel tanks
Fiberglass water and holding tanks
